25.6V 100AH LIFEPO4 51.2 kwh
|
Product name
|

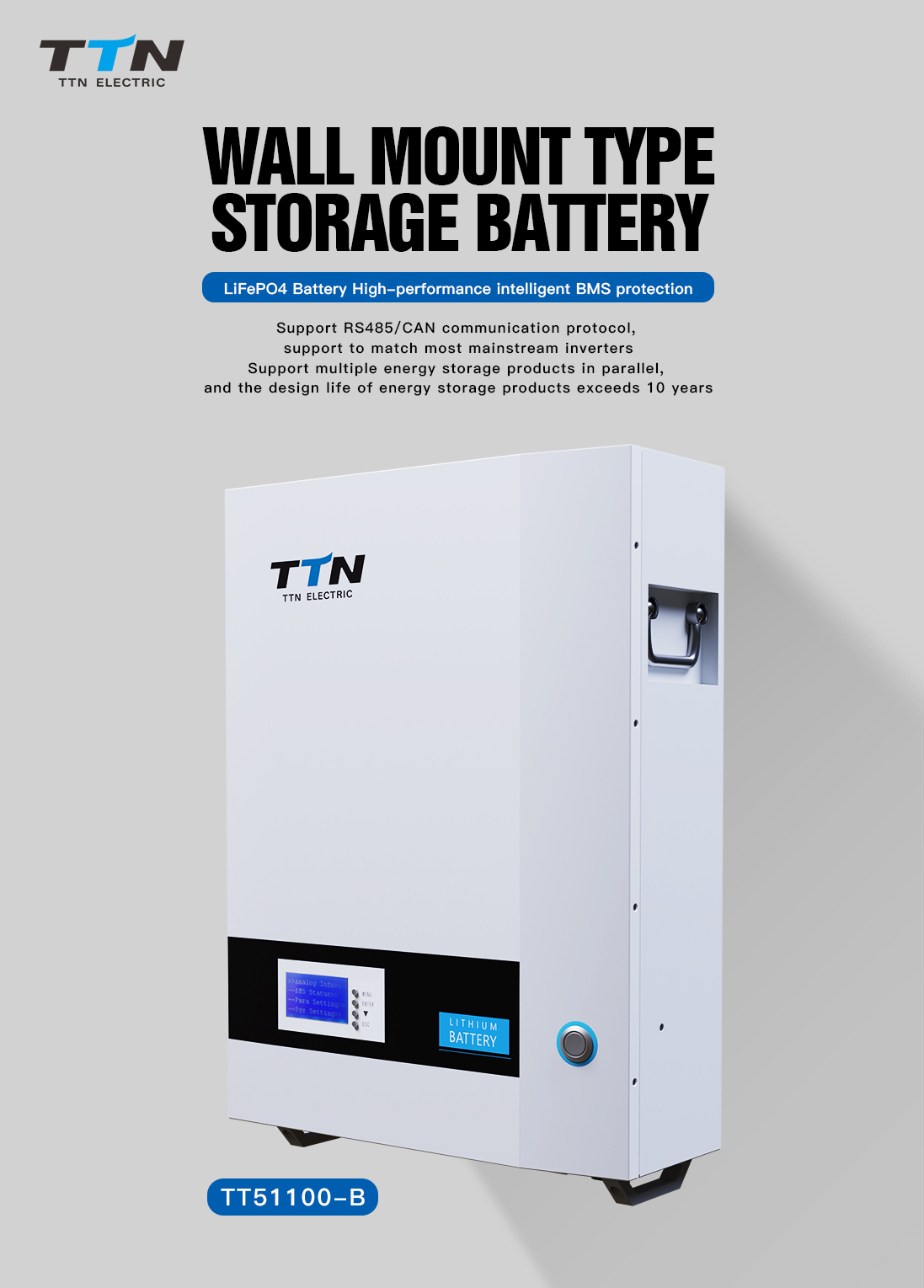

Wall Mounted Type Storage Battery
|
|
Model
|
TT5100-B
|
|
Nominal voltage
|
51.2v
|
|
Rated capacity
|
100ah
|
|
Size
|
433*446*186mm
|
|
Weight
|
48.17kg
|
|
Charging method
|
CC/CV
|
|
Composition
|
16S1P
|
|
Maximum charging current(A)
|
Max0.5C@25℃
|
|
Charge cut-off voltage(V)
|
58.4V
|
|
Discharge method
|
CC/CV/CP
|
|
Discharge current:
|
1C
|
|
Maximum discharge current:
|
MAX120A@25℃
|
|
Discharge cut-off voltage
|
43.2v
|
|
Display method
|
LCD
|
|
Communication interface
|
RS485/RS232/CAN
|
